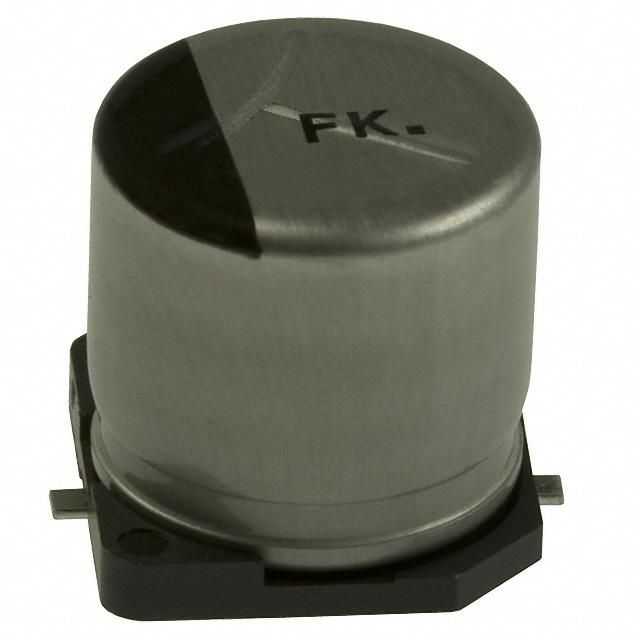

220µF, 50V aluminum electrolytic capacitor with 20% tolerance. Features 180mΩ ESR and impedance, 670mA ripple current, and a 2000-hour life at 105°C. Surface mount radial package with cylindrical construction, measuring 10.2mm in length. AEC-Q200 rated and supplied in tape and reel packaging.
Sign in to ask questions about the Panasonic EEV-FK1H221P datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEV-FK1H221P technical specifications.
| Capacitance | 220uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| ESR (Equivalent Series Resistance) | 180mR |
| Impedance | 180mR |
| Lead Free | Contains Lead |
| Length | 10.2mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Resistance | 0.18R |
| Ripple Current | 670mA |
| Ripple Current (AC) | 670mA |
| RoHS Compliant | No |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
| Width | 900um |
| RoHS | Not Compliant |
