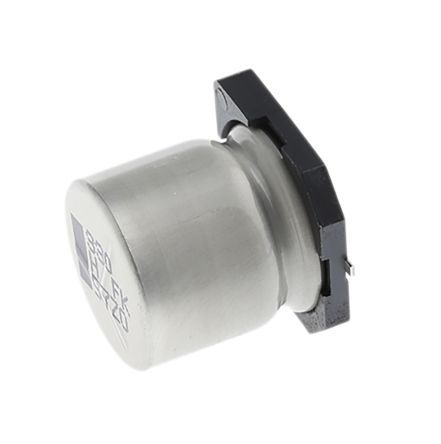

50V 330uF aluminum electrolytic capacitor with 20% tolerance, designed for surface mount applications. Features a 120mΩ ESR and 900mA ripple current capability. Operates across a -55°C to 105°C temperature range, with a 5000-hour life rating. Supplied in tape and reel packaging.
Sign in to ask questions about the Panasonic EEV-FK1H331Q datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic EEV-FK1H331Q technical specifications.
| Capacitance | 330uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 12.5mm |
| Dissipation Factor | 10% |
| ESR (Equivalent Series Resistance) | 120mR |
| Height | 13.5mm |
| Impedance | 120mR |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 14mm |
| Life (Hours) | 5000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 200 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 900mA |
| Ripple Current (AC) | 900mA |
| RoHS Compliant | Yes |
| Series | FK |
| Size | 13.5mm |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 50V |
| Voltage Rating | 50V |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
| Width | 900um |
| RoHS | Compliant |
