Aluminum electrolytic capacitor, 680µF capacitance, 35V DC rated voltage, 20% tolerance. Features 60mΩ ESR and 1.1A ripple current capability. Operates from -55°C to 105°C, with a 5000-hour lifespan at rated conditions. Surface mount radial package, 12.5mm diameter by 13.5mm height, suitable for automotive applications (AEC-Q200).
PackageRadial
Voltage35V
Capacitance680uF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEV-FK1V681Q technical specifications.
General
| Capacitance | 680uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 12.5mm |
| Dissipation Factor | 12% |
| ESR (Equivalent Series Resistance) | 60mR |
| Height | 13.5mm |
| Impedance | 60mR |
| Lead Free | Lead Free |
| Leakage Current | 3uA |
| Length | 14mm |
| Life (Hours) | 5000Hour |
| Material | Aluminium |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 200 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 1.1A |
| Ripple Current (AC) | 1.1A |
| RoHS Compliant | Yes |
| Series | FK |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
| Width | 900um |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEV-FK1V681Q Datasheet
Download the complete datasheet for Panasonic EEV-FK1V681Q to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

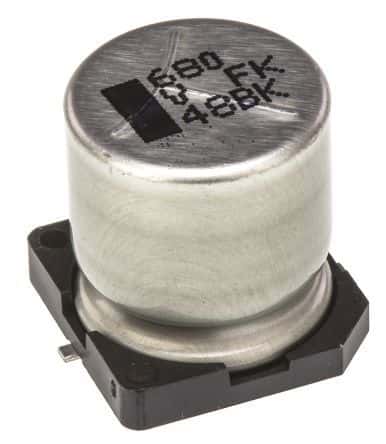

Product Images
