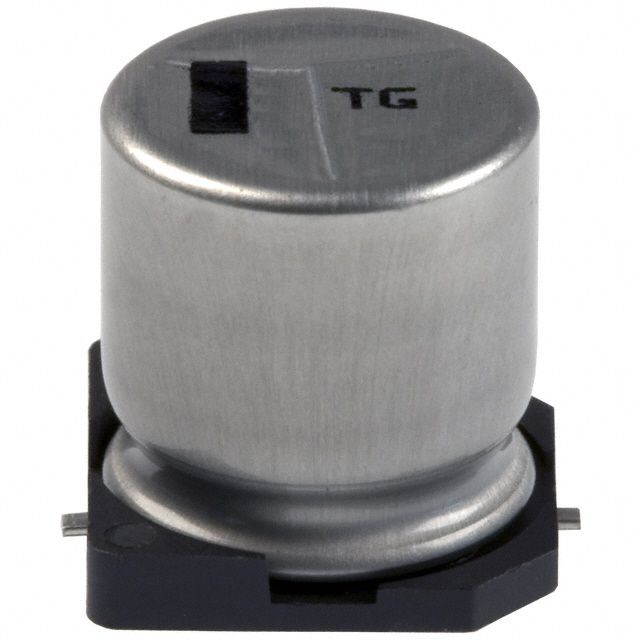

680µF, 16V aluminum electrolytic capacitor with 20% tolerance. Features 120mΩ ESR, 800mA ripple current, and a dissipation factor of 0.23%. Operates from -40°C to 125°C with a 1000-hour life rating. Supplied in a radial, cylindrical SMD package measuring 12.5mm diameter, 15mm height, and 13.5mm length, suitable for surface mounting. AEC-Q200 qualified and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EEV-TG1C681Q datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 680uF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 12.5mm |
| Dissipation Factor | 0.23% |
| ESR (Equivalent Series Resistance) | 120mR |
| Height | 15mm |
| Lead Free | Lead Free |
| Length | 13.5mm |
| Life (Hours) | 1000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 200 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Resistance | 0.12R |
| Ripple Current | 800mA |
| RoHS Compliant | Yes |
| Series | TG |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage Rating | 16V |
| DC Rated Voltage | 16V |
| Width | 900um |
| RoHS | Compliant |
