Surface mount aluminum electrolytic capacitor with 1000µF capacitance and 35V voltage rating. Features 20% tolerance, 75mΩ ESR, and 1.3A ripple current. Operates from -40°C to 125°C with a 2000-hour life rating. AEC-Q200 qualified and RoHS compliant.
PackageRadial
Voltage35V
Capacitance1mF
Voltage Rating35V
Quick Jump:
Technical Specifications
Panasonic EEV-TG1V102M technical specifications.
General
| Capacitance | 1mF |
| Package/Case | Radial |
| Construction | Cylindrical |
| Diameter | 18mm |
| Dielectric Material | Aluminium |
| Dissipation Factor | 0.16% |
| ESR (Equivalent Series Resistance) | 75mR |
| Height | 16.5mm |
| Lead Free | Lead Free |
| Leakage Current | 350uA |
| Length | 16.5mm |
| Life (Hours) | 2000Hour |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 125 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Ripple Current | 1.3A |
| Ripple Current (AC) | 1.3A |
| RoHS Compliant | Yes |
| Series | TG |
| Termination | SMD/SMT |
| Tolerance | 20% |
| Voltage | 35V |
| Voltage Rating | 35V |
| DC Rated Voltage | 35V |
| Width | 1.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic EEV-TG1V102M Datasheet
Download the complete datasheet for Panasonic EEV-TG1V102M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

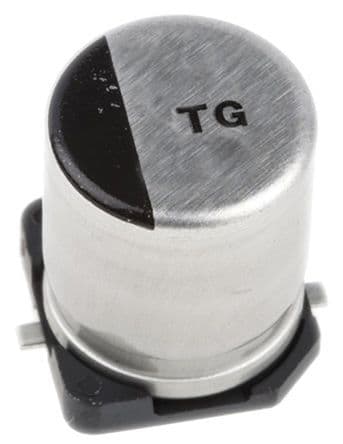

Product Images
