Surface mount fixed inductor with 10µH inductance and 20% tolerance. Features a 530mA DC current rating and 430mΩ DC resistance. Housed in a 1210 (3225 metric) case, this unshielded component operates at 100kHz test frequency and is RoHS compliant. Available on tape and reel for efficient assembly.
Package1210
Current260mA
Current Rating530mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ELC-3FN100M technical specifications.
General
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Current | 260mA |
| Current Rating | 530mA |
| DC Current | 530mA |
| DC Resistance (DCR) | 430mR |
| Depth | 3.5mm |
| Height | 1.2mm |
| Inductance | 10uH |
| Lead Free | Lead Free |
| Length | 0.126inch |
| Max DC Current | 530mA |
| Military Standard | Not |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | N |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ELC-3FN100M Datasheet
Download the complete datasheet for Panasonic ELC-3FN100M to view detailed technical specifications.
No datasheet is available for this part.

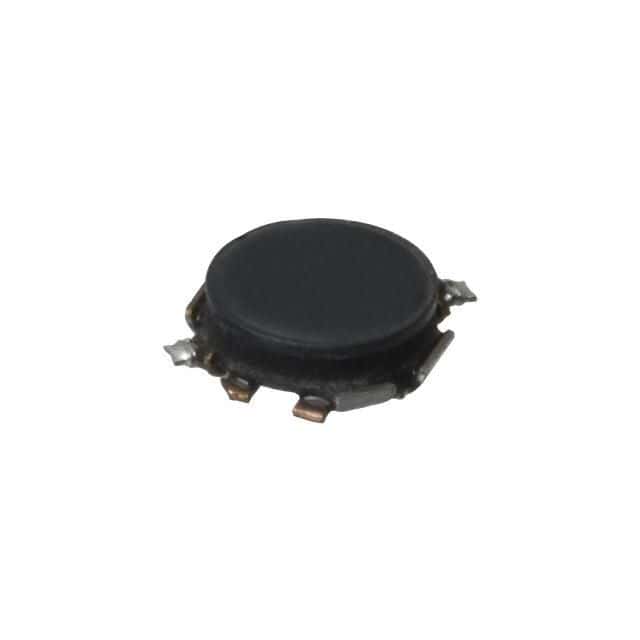

Product Images
