Surface mount wirewound inductor with 10 µH inductance and 5% tolerance. Features a 140 mA rated current, 2.1 Ω DC resistance, and unshielded ferrite core. Operates within a -20°C to 85°C temperature range. Packaged in a 1210 (3225 Metric) case for tape and reel mounting.
Package1210
Current60mA
Current Rating140mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ELJ-FA100JF technical specifications.
General
Case Code (Imperial)
1210
Case Code (Metric)
3225
Package/Case
1210
Core Material
Ferrite
Current
60mA
Current Rating
140mA
DC Current
140mA
DC Resistance (DCR)
2.1R
Depth
2.7mm
Height
2.2mm
Inductance
10uH
Inductance Tolerance
5%
Inductor Type
Wirewound
Lead Free
Lead Free
Length
3.2mm
Max DC Current
140mA
Max Operating Temperature
85°C
Military Standard
Not
Min Operating Temperature
-20°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Q Factor
30
Rated Current-Max
140mA
Reach SVHC Compliant
Unknown
RMS Current (Irms)
140mA
RoHS Compliant
Yes
Self Resonant Frequency
36MHz
Series
FA
Shielding
Unshielded
Termination
SMD/SMT
Test Frequency
2.52MHz
Tolerance
5%
Weight
0.000564oz
Width
2.5mm
Compliance
RoHS
Compliant
Datasheet
Panasonic ELJ-FA100JF Datasheet
Download the complete datasheet for Panasonic ELJ-FA100JF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

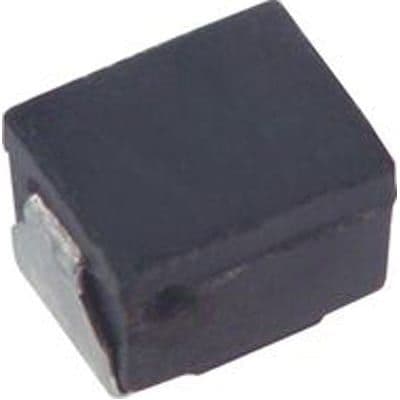

Product Images
