General purpose wirewound chip inductor with 100µH inductance and 5% tolerance. Features a ferrite core, 60mA rated current, and 10Ω DC resistance. Operates within a -20°C to +85°C temperature range. Surface mountable in a 1210 (3225 metric) case code, supplied on tape and reel. Tested at 796kHz with a Q factor of 20.
Package1210
Current200mA
Current Rating60mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ELJ-FA101JF technical specifications.
General
| Case Code (Imperial) | 1210 |
| Case Code (Metric) | 3225 |
| Package/Case | 1210 |
| Core Material | Ferrite |
| Current | 200mA |
| Current Rating | 60mA |
| DC Current | 60mA |
| DC Resistance (DCR) | 10R |
| Depth | 2.7mm |
| Height | 2.2mm |
| Inductance | 100uH |
| Inductance Tolerance | 5% |
| Inductor Type | Wirewound |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max DC Current | 60mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 20 |
| Radiation Hardening | No |
| Rated Current-Max | 60mA |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 60mA |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 10MHz |
| Series | FA |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 796kHz |
| Tolerance | 5% |
| Width | 2.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ELJ-FA101JF Datasheet
Download the complete datasheet for Panasonic ELJ-FA101JF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

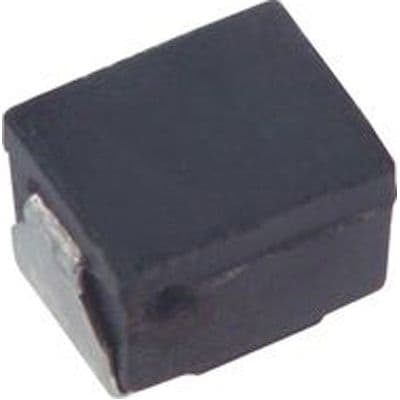

Product Images
