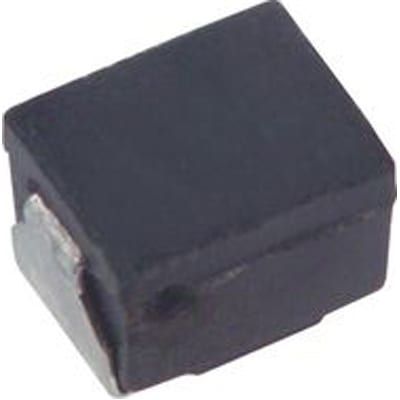

Surface mount general purpose chip inductor featuring 18µH inductance with a 10% tolerance. This molded wirewound component utilizes a ferrite core and offers a DC current rating of 110mA. Operating within a temperature range of -20°C to 85°C, it has a DC resistance of 850mΩ and a self-resonant frequency of 27MHz. The 1210 package size is supplied on tape and reel.
Sign in to ask questions about the Panasonic ELJ-FA180KF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic ELJ-FA180KF technical specifications.
| Case Code (Imperial) | 1008 |
| Case Code (Metric) | 2520 |
| Package/Case | 1210 |
| Core Material | Ferrite |
| Current | 340mA |
| Current Rating | 110mA |
| DC Current | 110mA |
| DC Resistance (DCR) | 850mR |
| Depth | 2.7mm |
| Height | 0.086inch |
| Inductance | 18uH |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max DC Current | 110mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 27MHz |
| Series | PC |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 2.52MHz |
| Tolerance | 10% |
| Weight | 0.000564oz |
| Width | 2.5mm |
| RoHS | Compliant |
