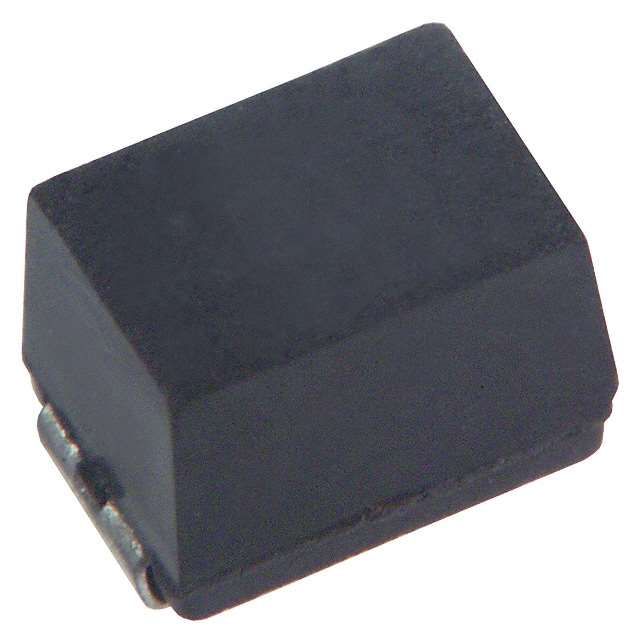

General purpose, wirewound fixed inductor with 1mH inductance and 5% tolerance. Features a 40mA rated current, 53 Ohm DC resistance, and operates within a -20°C to 85°C temperature range. Surface mountable in an 1812 (4532) case code with ferrite core. Unshielded, lead-free, and RoHS compliant.
Sign in to ask questions about the Panasonic ELJ-FB102JF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic ELJ-FB102JF technical specifications.
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | 1812 |
| Core Material | Ferrite |
| Current Rating | 40mA |
| DC Current | 40mA |
| DC Resistance (DCR) | 53R |
| Depth | 3.4mm |
| Height | 3.2mm |
| Inductance | 1mH |
| Inductance Tolerance | 5% |
| Inductor Type | Wirewound |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Max DC Current | 40mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Q Factor | 30 |
| Radiation Hardening | No |
| Rated Current-Max | 40mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 2.1MHz |
| Series | FB |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 5% |
| Type | General Purpose |
| Width | 3.2mm |
| RoHS | Compliant |
