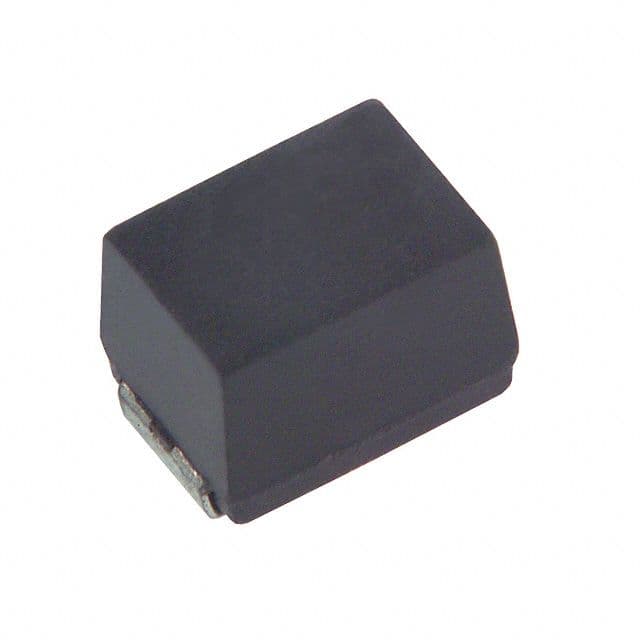

Surface mount fixed inductor with 12µH inductance and 10% tolerance. Features a 340mA current rating, 3.5Ω DC resistance, and ferrite core. Housed in an 1812 (4532) package with dimensions of 4.5mm length, 3.2mm width, and 3.4mm depth. Operating temperature range is -20°C to 85°C, with a self-resonant frequency of 17MHz. This RoHS compliant component is provided on tape and reel.
Package1812
Current160mA
Current Rating340mA
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic ELJ-PB120KF datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic ELJ-PB120KF technical specifications.
General
| Case Code (Imperial) | 1812 |
| Case Code (Metric) | 4532 |
| Package/Case | 1812 |
| Core Material | Ferrite |
| Current | 160mA |
| Current Rating | 340mA |
| DC Resistance (DCR) | 3.5R |
| Depth | 3.4mm |
| Height | 3.2mm |
| Inductance | 12uH |
| Inductance Tolerance | 10% |
| Lead Free | Lead Free |
| Lead Pitch | 2.6mm |
| Length | 4.5mm |
| Max DC Current | 340mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 10 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 17MHz |
| Series | ELJPB |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 2.52MHz |
| Tolerance | 10% |
| Width | 3.2mm |
