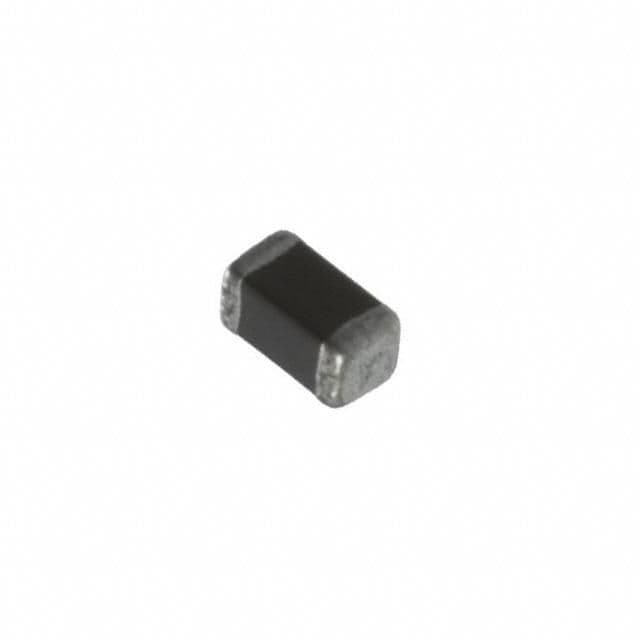

Surface mount fixed inductor with 1.8nH inductance and 400mA DC current rating. Features a compact 0402 (1005 metric) ceramic, non-magnetic core. Offers 80mΩ DC resistance and a Q factor of 8 at 100MHz. Operates within a -20°C to 85°C temperature range, is lead-free and RoHS compliant, with a self-resonant frequency of 6GHz. Packaged on tape and reel for automated assembly.
Sign in to ask questions about the Panasonic ELJ-RF1N8DFB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic ELJ-RF1N8DFB technical specifications.
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Core Material | Non-Magnetic, Ceramic |
| DC Current | 400mA |
| DC Resistance (DCR) | 80mR |
| Depth | 0.55mm |
| Height | 0.5mm |
| Inductance | 1.8nH |
| Lead Free | Lead Free |
| Length | 1mm |
| Max DC Current | 400mA |
| Max Operating Temperature | 85°C |
| Military Standard | Not |
| Min Operating Temperature | -20°C |
| Mount | Surface Mount |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Q Factor | 8 |
| Rated Current-Max | 400mA |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 6GHz |
| Series | RF |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Test Frequency | 100MHz |
| Width | 0.5mm |
| RoHS | Compliant |
