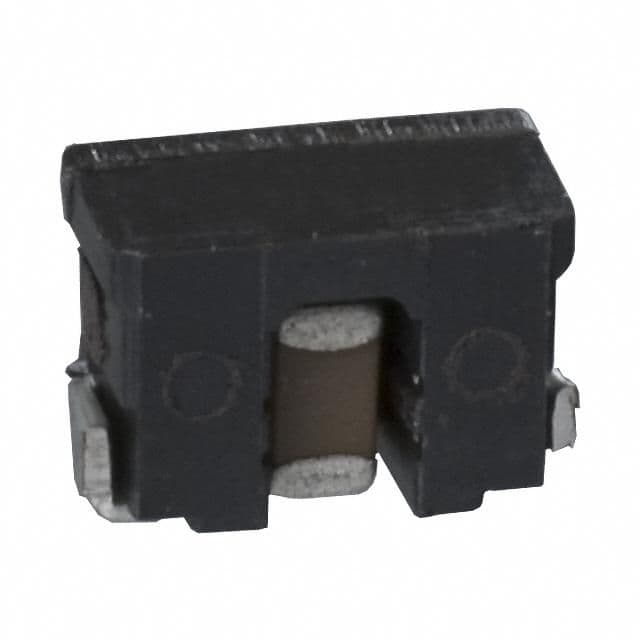

Surface mount LC filter with 100pF capacitance and 50MHz operating frequency. Features a 2A current rating and 50V DC voltage rating. Encased in a 1206 package, this component operates within a temperature range of -20°C to 85°C. Designed for general EMI/RFI filtering applications.
Sign in to ask questions about the Panasonic ELK-E101FA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic ELK-E101FA technical specifications.
| Capacitance | 100pF |
| Case Code (Imperial) | 1207 |
| Case Code (Metric) | 3218 |
| Package/Case | 1206 |
| Current | 2A |
| Current Rating | 2A |
| ESD Protection | No |
| Lead Free | Contains Lead |
| Max Current Rating | 2A |
| Max DC Current | 2A |
| Max Frequency | 50MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 50V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Operating Frequency | 50 MHz |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | ELKE |
| Termination | SMD/SMT |
| DC Rated Voltage | 50V |
| RoHS | Compliant |
