Surface mount LC filter with 1nF capacitance and 5MHz operating frequency. Features a 2A current rating and 50V DC voltage rating. Encased in a 1206 package with dimensions of 3.2mm length, 1.8mm width, and 2.2mm height. Lead-free and RoHS compliant, supplied on tape and reel.
Frequency5MHz
Package1206
Current2A
Capacitance1nF
Quick Jump:
Technical Specifications
Panasonic ELK-E102FA technical specifications.
General
| Capacitance | 1nF |
| Case Code (Imperial) | 1207 |
| Case Code (Metric) | 3218 |
| Package/Case | 1206 |
| Current | 2A |
| Current Rating | 2A |
| Depth | 1.8mm |
| ESD Protection | No |
| Height | 2.2mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Current Rating | 2A |
| Max DC Current | 2A |
| Max Frequency | 5MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 50V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Operating Frequency | 5 MHz |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | ELKE |
| Termination | SMD/SMT |
| Voltage Rating (AC) | 50V |
| DC Rated Voltage | 50V |
| Width | 1.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ELK-E102FA Datasheet
Download the complete datasheet for Panasonic ELK-E102FA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

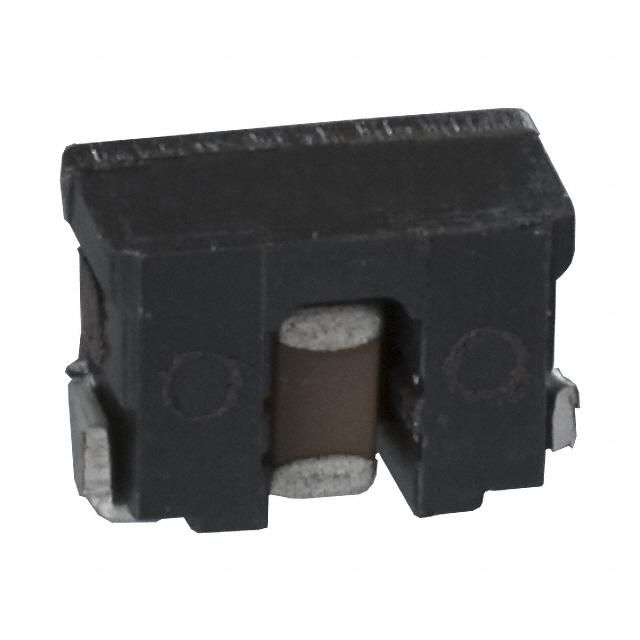

Product Images
