Surface mount LC filter with 10nF capacitance, designed for EMI/RFI suppression. Features a 2A maximum DC current rating and operates up to 500kHz. Housed in a 1207 (3218 metric) case code, this component offers 50V DC rated voltage and is RoHS and REACH SVHC compliant. Operating temperature range is -20°C to 85°C.
Frequency500kHz
Package1207
Current2A
Capacitance10nF
Quick Jump:
Technical Specifications
Panasonic ELK-E103FA technical specifications.
General
| Capacitance | 10nF |
| Case Code (Imperial) | 1207 |
| Case Code (Metric) | 3218 |
| Package/Case | 1207 |
| Current | 2A |
| Current Rating | 2A |
| Depth | 1.8mm |
| ESD Protection | No |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Current Rating | 2A |
| Max DC Current | 2A |
| Max Frequency | 500kHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 50V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Operating Frequency | 0.5 MHz |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | ELKE |
| Termination | SMD/SMT |
| DC Rated Voltage | 50V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ELK-E103FA Datasheet
Download the complete datasheet for Panasonic ELK-E103FA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

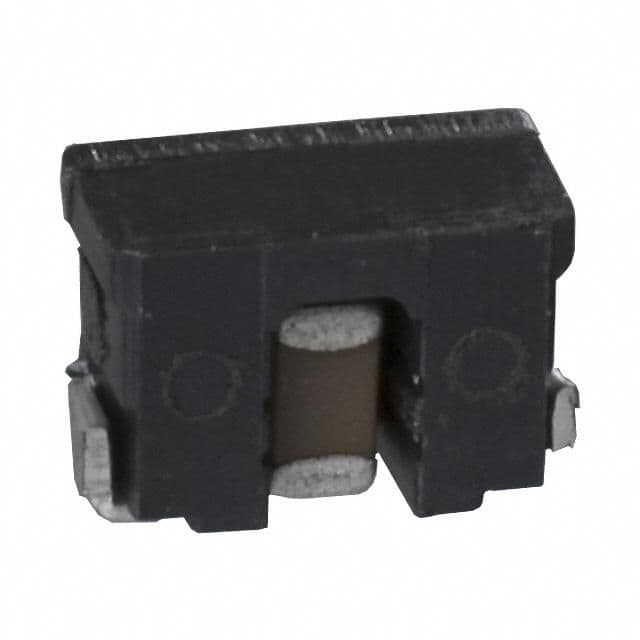

Product Images
