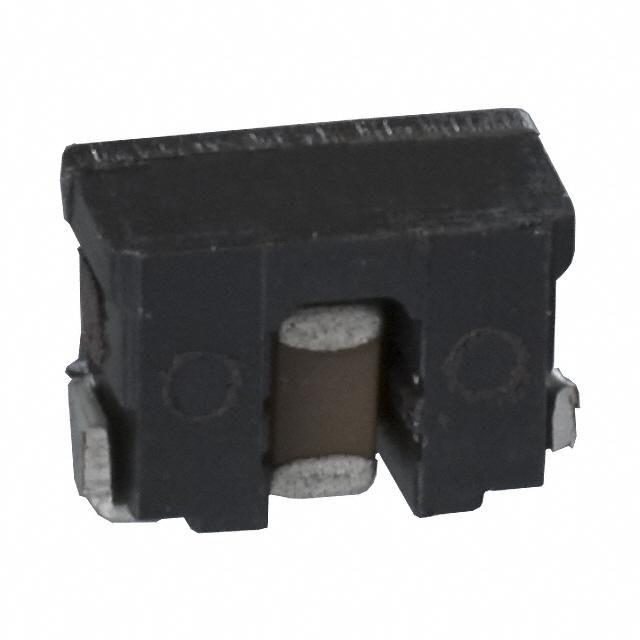

Surface mount LC filter with 2.2nF capacitance and 3MHz operating frequency. Features a 6A current rating, 50V DC voltage rating, and operates within a -20°C to 85°C temperature range. Housed in a 1207 (3218 metric) case code, this lead-free, RoHS-compliant component is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic ELK-EA222FA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Capacitance | 2.2nF |
| Case Code (Imperial) | 1207 |
| Case Code (Metric) | 3218 |
| Package/Case | 1207 |
| Current | 6A |
| Current Rating | 6A |
| ESD Protection | No |
| Height | 2.2mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Current Rating | 6A |
| Max DC Current | 5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 50V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Operating Frequency | N/A |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | ELKEA |
| Termination | SMD/SMT |
| DC Rated Voltage | 50V |
| Width | 1.8mm |
| RoHS | Compliant |
