Surface mount LC filter with 33nF capacitance and 6A maximum current rating. Features a 25V DC voltage rating and operates within a temperature range of -20°C to 85°C. Packaged in a 1207 (3218 metric) case code, this lead-free, RoHS-compliant component is supplied on tape and reel.
FrequencyN/A
Package1207
Current6A
Capacitance33nF
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic ELK-EA333FA datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic ELK-EA333FA technical specifications.
General
| Capacitance | 33nF |
| Case Code (Imperial) | 1207 |
| Case Code (Metric) | 3218 |
| Package/Case | 1207 |
| Current | 6A |
| Current Rating | 6A |
| ESD Protection | No |
| Height | 2.2mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Current Rating | 6A |
| Max DC Current | 5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 25V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Operating Frequency | N/A |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | ELKEA |
| Termination | SMD/SMT |
| Voltage Rating | 25V |
| DC Rated Voltage | 25V |
| Width | 1.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ELK-EA333FA Datasheet
Download the complete datasheet for Panasonic ELK-EA333FA to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

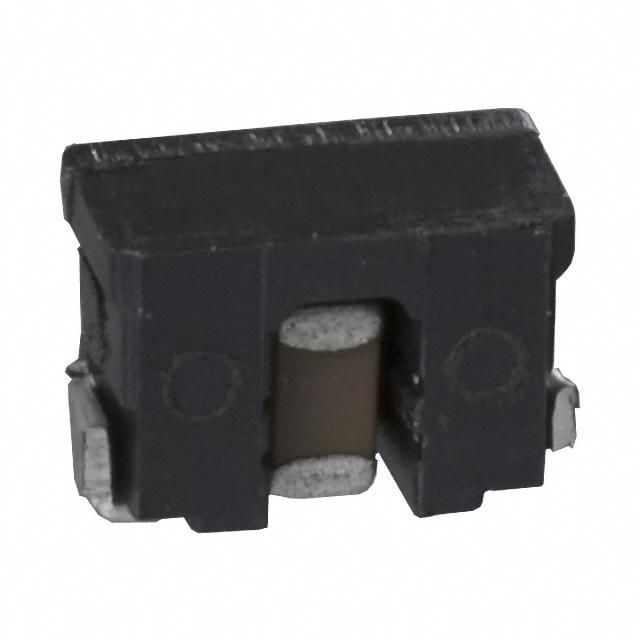

Product Images
