Surface mount LC filter with 470pF capacitance and 15MHz frequency. Features a 6A current rating, 50V DC voltage rating, and operates between -20°C and 85°C. Housed in a 1207 (3218 metric) case, this lead-free, RoHS compliant component is supplied on tape and reel.
FrequencyN/A
Package1207
Current6A
Capacitance470pF
Quick Jump:
Technical Specifications
Panasonic ELK-EA471FA technical specifications.
General
| Capacitance | 470pF |
| Case Code (Imperial) | 1207 |
| Case Code (Metric) | 3218 |
| Package/Case | 1207 |
| Current | 6A |
| Current Rating | 6A |
| ESD Protection | No |
| Height | 2.2mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Current Rating | 6A |
| Max DC Current | 5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (DC) | 50V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Operating Frequency | N/A |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | ELKEA |
| Termination | SMD/SMT |
| DC Rated Voltage | 50V |
| Width | 1.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ELK-EA471FA Datasheet
Download the complete datasheet for Panasonic ELK-EA471FA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

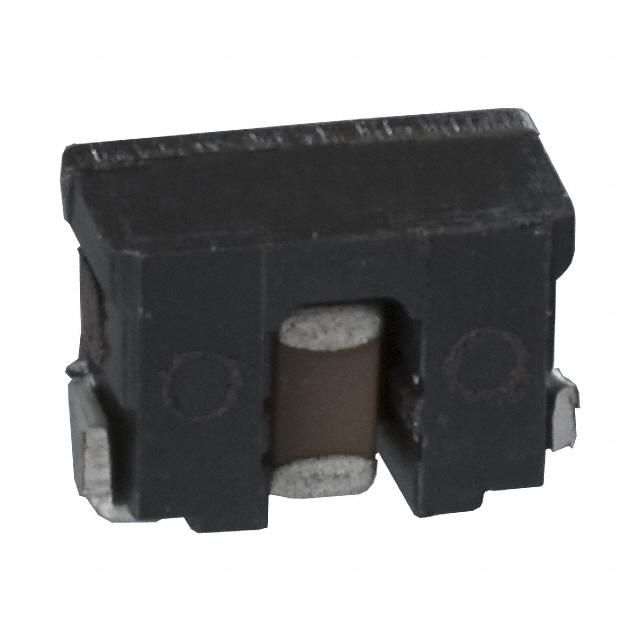

Product Images
