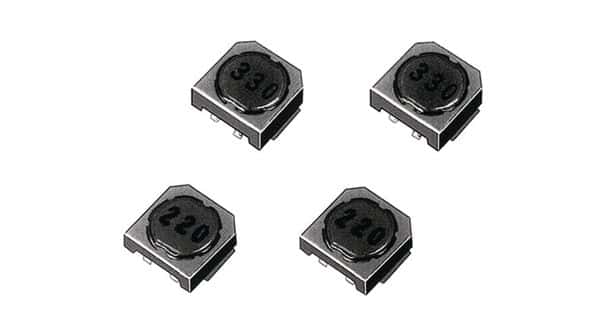

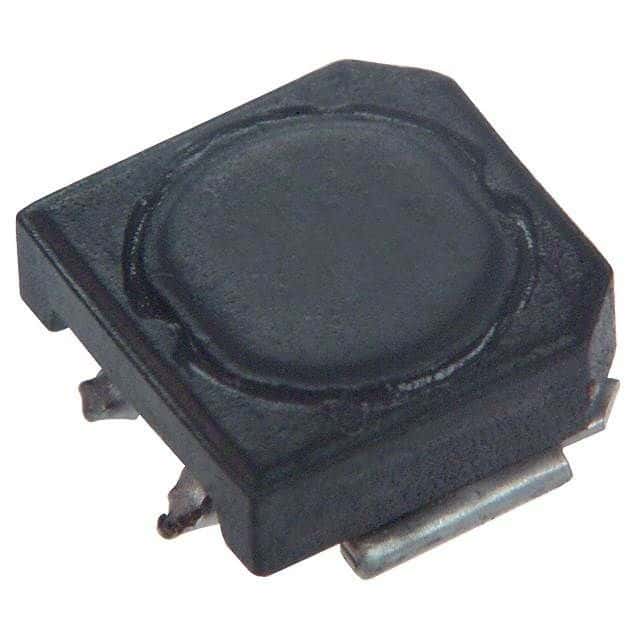

Surface mount fixed inductor with 10µH inductance and 20% tolerance. Features a 1.1A current rating, 95mΩ DC resistance, and a shielded metal composite core. Operates up to 105°C and is RoHS compliant. Dimensions are 6.9mm (L) x 6mm (W) x 2.8mm (H).
Sign in to ask questions about the Panasonic ELL-6RH100M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic ELL-6RH100M technical specifications.
| Package/Case | Nonstandard |
| Core Material | Metal, Composite |
| Current Rating | 1.1A |
| DC Current | 1.1A |
| DC Resistance (DCR) | 95mR |
| DC Resistance-Max | 95MR |
| Depth | 6.5mm |
| Height | 2.8mm |
| Inductance | 10uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 6.9mm |
| Max DC Current | 1.1A |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 1.1A |
| RoHS Compliant | Yes |
| Series | H |
| Series Resistance | 95mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6mm |
| RoHS | Compliant |
