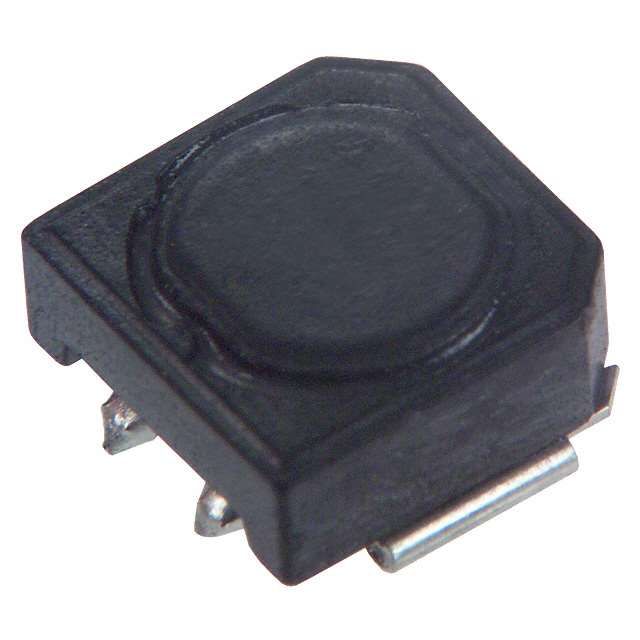

Surface mount fixed inductor with 15µH inductance and 20% tolerance. Features a 1.1A current rating (DC, RMS, and saturation) and a low 96mΩ DC resistance. Constructed with a ferrite core and shielded for reliable performance. Dimensions are 6mm length, 6mm width, and 3.3mm height, with a nonstandard package.
PackageNonstandard
Current Rating1.1A
MountingSurface Mount
Inductance15uH
Quick Jump:
Technical Specifications
Panasonic ELL-6SH150M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 1.1A |
| DC Current | 1.1A |
| DC Resistance (DCR) | 96mR |
| DC Resistance-Max | 96MR |
| Depth | 6.5mm |
| Height | 3.3mm |
| Inductance | 15uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 6mm |
| Max DC Current | 1.1A |
| Military Standard | Not |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 1.1A |
| RoHS Compliant | Yes |
| Saturation Current | 1.1A |
| Series | H |
| Series Resistance | 96mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ELL-6SH150M Datasheet
Download the complete datasheet for Panasonic ELL-6SH150M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
