Surface mount fixed inductor with 1.5µH inductance and 20% tolerance. Features a 6mm x 6mm x 3.3mm ferrite core, shielded construction, and a maximum DC current rating of 3.2A. DC resistance is 24mΩ, with a test frequency of 100kHz. Packaged on tape and reel, this component is RoHS compliant.
PackageNonstandard
Current3.4A
Current Rating3.2A
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ELL-6SH1R5M technical specifications.
General
| Body Diameter | 6mm |
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current | 3.4A |
| Current Rating | 3.2A |
| DC Current | 3.2A |
| DC Resistance (DCR) | 24mR |
| Depth | 6.5mm |
| Height | 3.3mm |
| Inductance | 1.5uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 0.251inch |
| Max DC Current | 3.2A |
| Military Standard | Not |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 3.2A |
| RoHS Compliant | Yes |
| Series | H |
| Series Resistance | 24mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ELL-6SH1R5M Datasheet
Download the complete datasheet for Panasonic ELL-6SH1R5M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

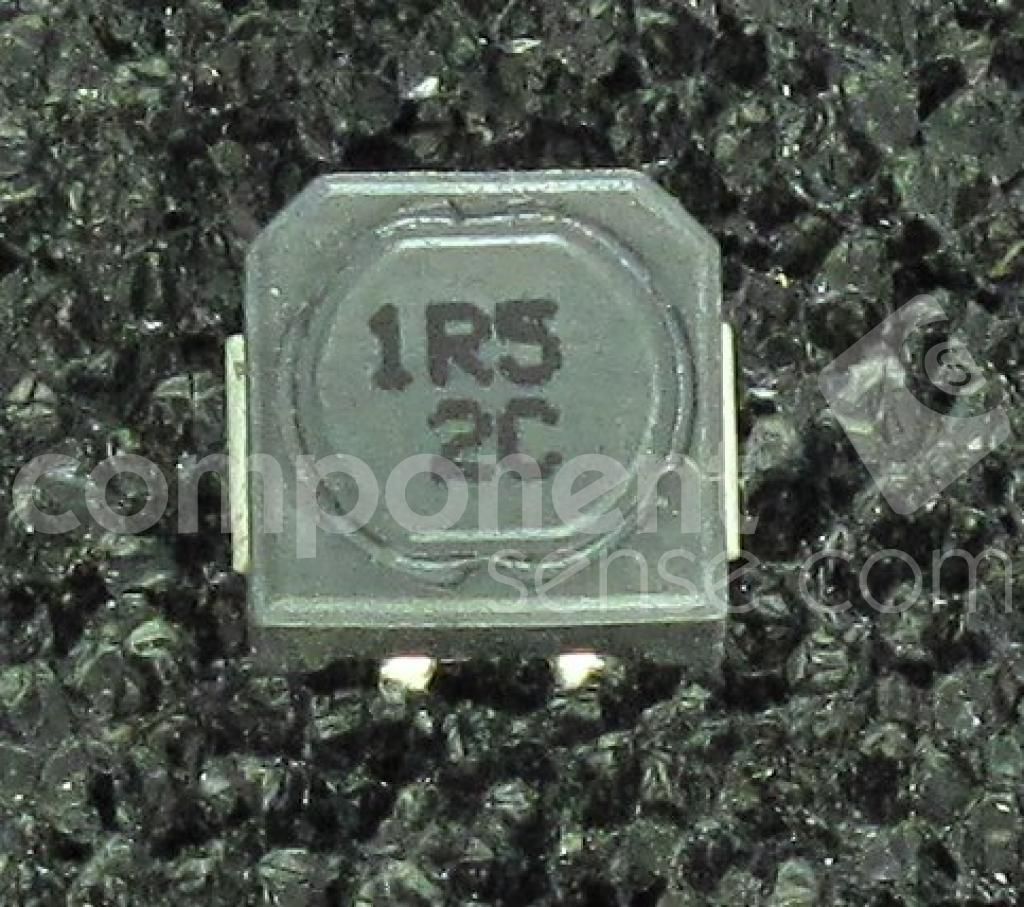

Product Images
