Shielded, surface mount fixed inductor with 22µH inductance and 20% tolerance. Features a 900mA DC current rating, 140mΩ DC resistance, and a metal, composite, ferrite core. Operates up to 105°C and is supplied on tape and reel.
PackageNonstandard
Current2.4A
Current Rating900mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ELL-6SH220M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Metal, Composite, Ferrite |
| Current | 2.4A |
| Current Rating | 900mA |
| DC Current | 900mA |
| DC Resistance (DCR) | 140mR |
| DC Resistance-Max | 140MR |
| Depth | 6.5mm |
| Height | 3.3mm |
| Inductance | 22uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 6mm |
| Max DC Current | 900mA |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 900mA |
| RoHS Compliant | Yes |
| Saturation Current | 900mA |
| Series | H |
| Series Resistance | 140mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ELL-6SH220M Datasheet
Download the complete datasheet for Panasonic ELL-6SH220M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

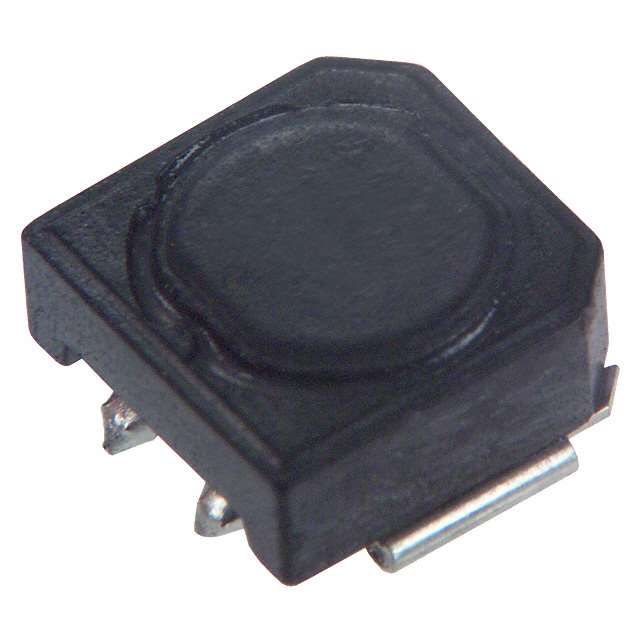

Product Images
