Shielded surface mount fixed inductor with 2.7µH inductance and 20% tolerance. Features a 2.4A DC current rating, 31mΩ DC resistance, and ferrite core. Dimensions are 6mm diameter, 6.5mm depth, and 3.3mm height. Designed for tape and reel packaging.
PackageNonstandard
Current1.8A
Current Rating2.4A
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ELL-6SH2R7M technical specifications.
General
| Body Diameter | 6mm |
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current | 1.8A |
| Current Rating | 2.4A |
| DC Current | 2.4A |
| DC Resistance (DCR) | 31mR |
| DC Resistance-Max | 31MR |
| Depth | 6.5mm |
| Height | 3.3mm |
| Inductance | 2.7uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 0.251inch |
| Max DC Current | 2.4A |
| Military Standard | Not |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 2.4A |
| RoHS Compliant | Yes |
| Saturation Current | 2.4A |
| Series | H |
| Series Resistance | 31mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ELL-6SH2R7M Datasheet
Download the complete datasheet for Panasonic ELL-6SH2R7M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

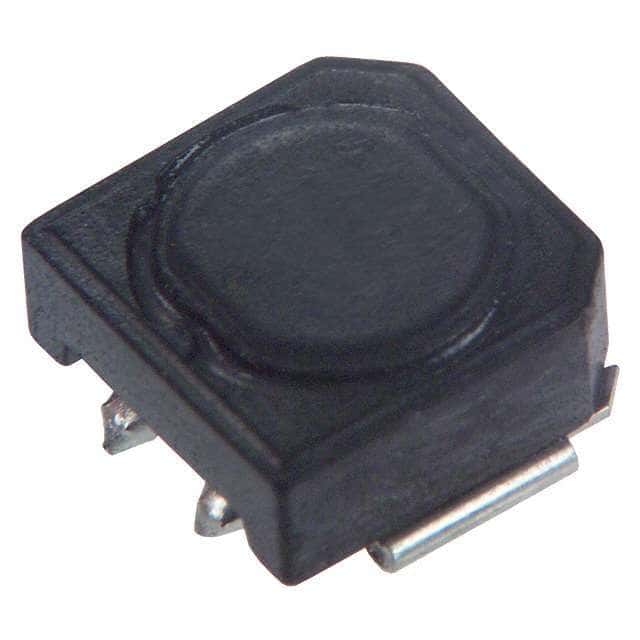

Product Images
