Shielded wirewound fixed inductor with 330µH inductance and 20% tolerance, rated for 330mA DC current at 100kHz. Features a low DC resistance of 1.36Ω and a maximum RMS current of 240mA. This surface mount component is supplied on tape and reel, measuring 6.5mm x 6mm x 3.3mm.
PackageNonstandard
Current2A
Current Rating240mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ELL-6SH331M technical specifications.
General
| Package/Case | Nonstandard |
| Current | 2A |
| Current Rating | 240mA |
| DC Current | 330mA |
| DC Resistance (DCR) | 1.36R |
| DC Resistance-Max | 2.7R |
| Depth | 6.5mm |
| Height | 3.3mm |
| Inductance | 330uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 6mm |
| Max DC Current | 330mA |
| Military Standard | Not |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 240mA |
| RoHS Compliant | Yes |
| Series | H |
| Series Resistance | 2.7R |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ELL-6SH331M Datasheet
Download the complete datasheet for Panasonic ELL-6SH331M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

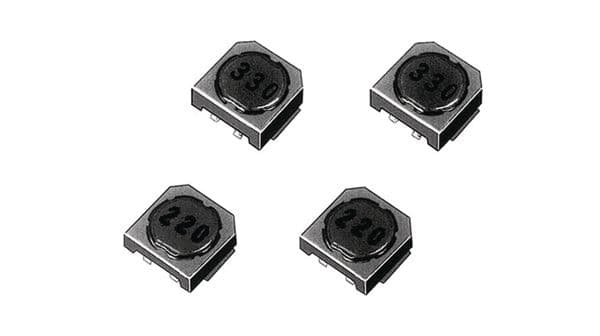

Product Images
