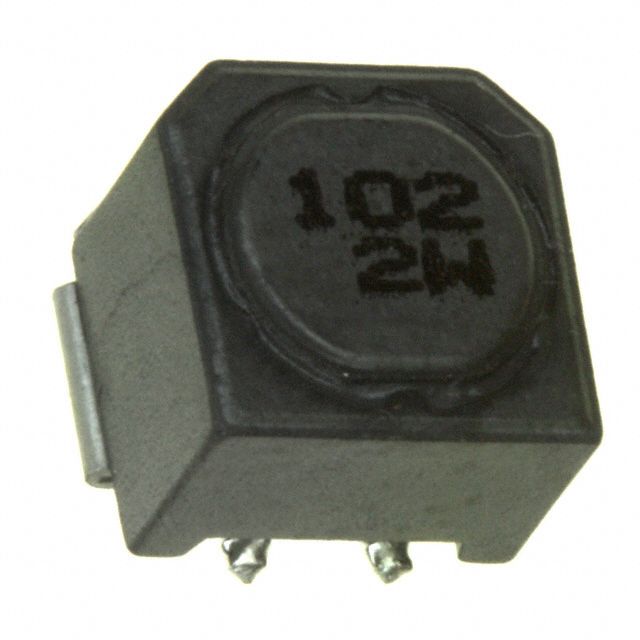

Surface mount fixed inductor with 33µH inductance and 20% tolerance. Features a 1.1A current rating (DC and RMS) and a low DC resistance of 130mΩ. This shielded component measures 6.5mm (depth) x 6mm (length) x 5mm (height) and is supplied on tape and reel. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic ELL-6UH330M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Nonstandard |
| Current Rating | 1.1A |
| DC Current | 1.1A |
| DC Resistance (DCR) | 130mR |
| DC Resistance-Max | 130MR |
| Depth | 6.5mm |
| Height | 5mm |
| Inductance | 33uH |
| Inductance Tolerance | 20% |
| Lead Free | Lead Free |
| Length | 6mm |
| Max DC Current | 1.1A |
| Military Standard | Not |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 1.1A |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 100kHz |
| Series | H |
| Series Resistance | 130mR |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 6mm |
| RoHS | Compliant |
