Surface mount fixed inductor with 15µH inductance and 20% tolerance, designed for 3.1A DC current. Features a low DC resistance of 25mΩ and operates within a temperature range of -40°C to 105°C. Constructed with a ferrite, metal, and composite core, this shielded component offers a compact size with dimensions of 12mm x 12.5mm x 4.5mm. Supplied on tape and reel for automated assembly.
PackageNonstandard
Current Rating3.1A
MountingSurface Mount
Inductance15uH
Quick Jump:
Technical Specifications
Panasonic ELL-CTV150M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite, Metal, Composite |
| Current Rating | 3.1A |
| DC Current | 3.1A |
| DC Resistance (DCR) | 25mR |
| Depth | 12.5mm |
| Height | 4.5mm |
| Inductance | 15uH |
| Inductance Tolerance | 20% |
| Length | 12mm |
| Max DC Current | 3.1A |
| Max Operating Temperature | 105°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 3.1A |
| RoHS Compliant | Yes |
| Self Resonant Frequency | 100kHz |
| Series | V |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 12mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ELL-CTV150M Datasheet
Download the complete datasheet for Panasonic ELL-CTV150M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

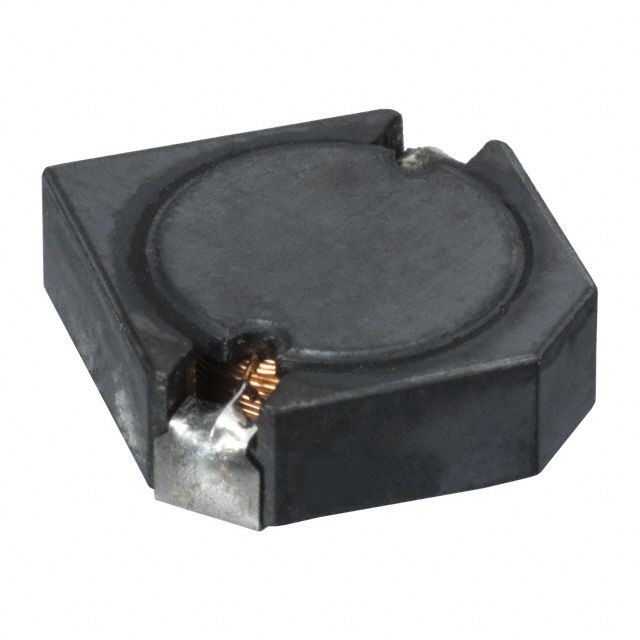

Product Images
