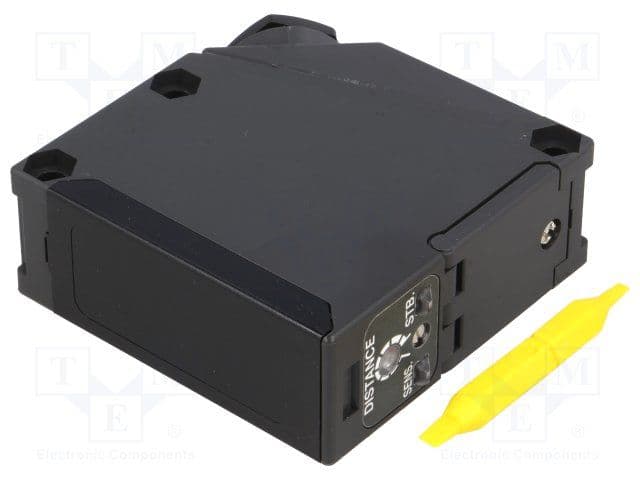

The EQ-512 is an infrared touchscreen sensor with a PNP output type and a maximum operating temperature of 55°C. It has a sensing distance of 1m and a response time of 2ms. The sensor is rated for IP67 and is part of the EQ-500 series. It is designed for screw termination and mounting. The EQ-512 is not RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic EQ-512 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Lead Free | Lead Free |
| Max Operating Temperature | 55°C |
| Min Operating Temperature | -20°C |
| Mount | Screw |
| Output Current | 100mA |
| Output Type | PNP |
| Ratings | IP67 |
| Response Time | 2ms |
| RoHS Compliant | No |
| Sensing Distance | 1m |
| Series | EQ-500 |
| Termination | Screw |
| Touchscreen | Infrared (IR) |
| RoHS | Not Compliant |
