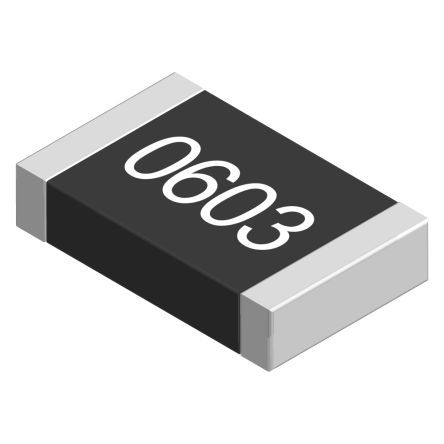

Surface mount chip resistor featuring 100 Ohm resistance with a tight 0.1% tolerance. This thin film metal element resistor is housed in a compact 0603 (1608 metric) case, measuring 1.6mm in length, 0.8mm in width, and 0.45mm in height. Rated for 75V DC and 100mW maximum power dissipation, it operates across a wide temperature range of -55°C to 155°C and is automotive AEC-Q200 qualified. The component is supplied on a tape and reel for automated assembly.
Package0603
Resistance100R
Voltage Rating75V
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERA-3AEB101V technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Construction
Rectangular
Contact Plating
Tin
Depth
0.8mm
Features
Automotive AEC-Q200
Height
0.45mm
Lead Free
Lead Free
Length
1.6mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
100mW
Military Standard
Not
Mount
Surface Mount
Number of Terminations
2
Package Quantity
5000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
No
Resistance
100R
Resistance Tolerance
0.1%
Resistor Type
Thin Film
RoHS Compliant
Yes
Series
ERA-3A
Size Code
0603
Technology
METAL FILM
Termination
SMD/SMT
Tolerance
0.1%
Voltage Rating
75V
DC Rated Voltage
75V
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Panasonic ERA-3AEB101V Datasheet
Download the complete datasheet for Panasonic ERA-3AEB101V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
