Surface mount chip resistor featuring thin film technology and a 56 kΩ resistance with a tight 0.1% tolerance. Rated for 100 mW power dissipation and 75 V DC, this component operates across a wide temperature range from -55°C to 155°C. Constructed in a 0603 (1608 metric) case code with tin plating, it is designed for surface mount applications and meets automotive AEC-Q200 standards.
Package0603
Resistance56kR
Voltage Rating75V
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic ERA-3AEB563V datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic ERA-3AEB563V technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Rectangular |
| Contact Plating | Tin |
| Depth | 0.8mm |
| Features | Automotive AEC-Q200 |
| Height | 0.45mm |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Operating Temperature | 155°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100mW |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | No |
| Resistance | 56kR |
| Resistance Tolerance | 0.1% |
| Resistor Type | Thin Film |
| RoHS Compliant | Yes |
| Series | ERA-3A |
| Technology | METAL FILM |
| Termination | SMD/SMT |
| Tolerance | 0.1% |
| Voltage Rating | 75V |
| DC Rated Voltage | 75V |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERA-3AEB563V Datasheet
Download the complete datasheet for Panasonic ERA-3AEB563V to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

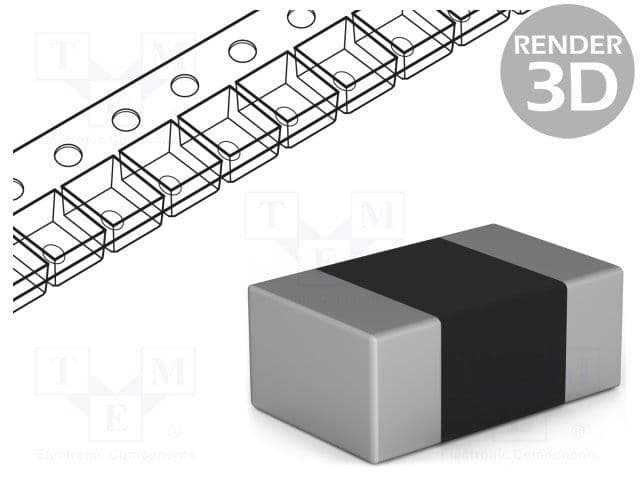

Product Images
