Surface mount thin film chip resistor, 1kΩ resistance with 0.1% tolerance. Features 0.25W (1/4W) power dissipation and a 150V DC voltage rating. Operates across a -55°C to +155°C temperature range. Housed in a 1206 (3216 metric) case with tin contact plating. Packaged in tape and reel for automated assembly.
Package1206
Resistance1kR
Voltage Rating150V
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERA-8AEB102V technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Contact Plating | Tin |
| Height | 0.028inch |
| Lead Free | Lead Free |
| Length | 0.126inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Resistance | 1kR |
| Resistance Tolerance | 0.1% |
| Resistor Type | Thin Film, Metal Film |
| RoHS Compliant | Yes |
| Series | ERA-8A |
| Tolerance | 0.1% |
| Voltage Rating | 150V |
| DC Rated Voltage | 150V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERA-8AEB102V Datasheet
Download the complete datasheet for Panasonic ERA-8AEB102V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

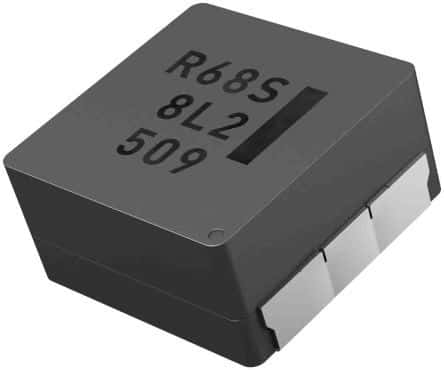

Product Images
