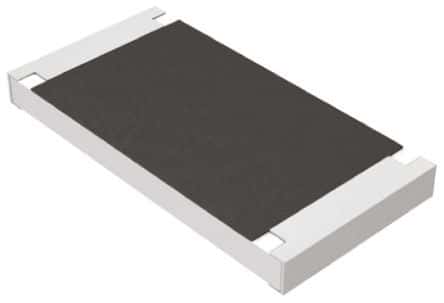

Surface mount resettable fuse, 500mA current rating, 32VDC maximum voltage. Features a 0402 (1005 metric) alumina case with dimensions of 1mm length, 0.5mm width, and 0.39mm height. Offers a DC cold resistance of 310mR and operates within a temperature range of -40°C to 125°C. This RoHS compliant component is supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic ERB-RD0R50X datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL |
| Body Material | Alumina |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Current | 500mA |
| Current Rating | 500mA |
| DC Cold Resistance | 310mR |
| Fuse Current | 500mA |
| Fuse Size | 1 X 0.5mm |
| Height | 0.39mm |
| Length | 1mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 32V |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ERB-RD |
| Voltage Rating | 32V |
| DC Rated Voltage | 32V |
| Width | 0.5mm |
| RoHS | Compliant |
