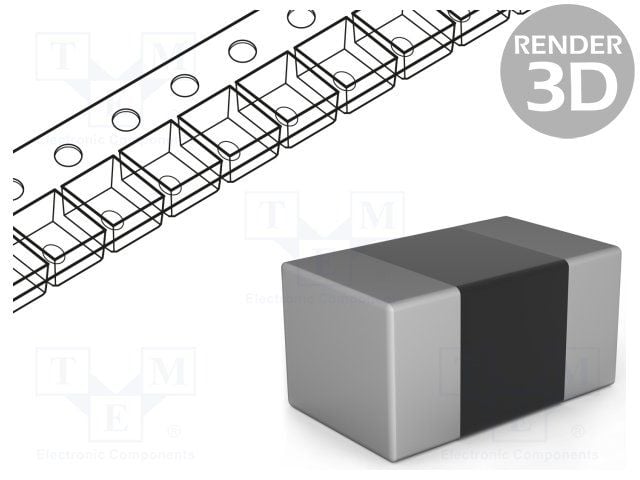

Surface mount resettable fuse, 1.5A current rating, 32V DC voltage rating. Features 70mΩ DC cold resistance and a compact 0402 (1005 metric) alumina case. Operating temperature range from -40°C to 125°C, supplied in tape and reel packaging. UL approved and RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic ERB-RD1R50X datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL |
| Body Material | Alumina |
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Current | 1.5A |
| Current Rating | 1.5A |
| DC Cold Resistance | 70mR |
| Fuse Current | 1.5A |
| Fuse Size | 1 X 0.5mm |
| Height | 0.39mm |
| Length | 1mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 32V |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ERB-RD |
| Voltage Rating | 32V |
| DC Rated Voltage | 32V |
| Width | 0.5mm |
| RoHS | Compliant |
