Package0603
Voltage Rating32V
Current Rating3A
MountingSurface Mount
Quick Jump:
Technical Specifications

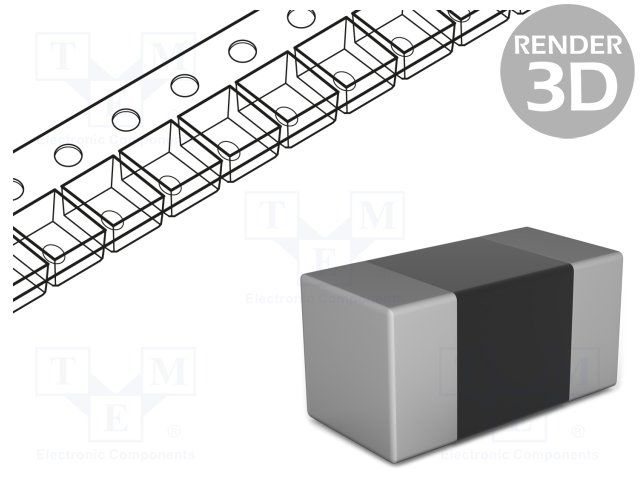

Panasonic ERB-RE3R00V technical specifications.
General
Body Material
Alumina
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Current Rating
3A
DC Cold Resistance
33mR
Depth
0.8mm
Fuse Current
3A
Fuse Size
1.6 X 0.8mm
Height
0.54mm
Length
1.6mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
32V
Mount
Surface Mount
Package Quantity
5000
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ERB-RE
Voltage Rating
32V
DC Rated Voltage
32V
Width
0.8mm
Compliance
RoHS
Compliant
Datasheet
Panasonic ERB-RE3R00V Datasheet
Download the complete datasheet for Panasonic ERB-RE3R00V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
