Automotive-qualified thick film chip resistor, 0402 (1005 metric) case size, offering 3kR resistance with a tight 1% tolerance. Features a 0.1W (1/10W) power rating, 50V voltage rating, and a wide operating temperature range of -55°C to +155°C. This surface mount component boasts a ±100ppm/°C temperature coefficient and is supplied in tape and reel packaging. Constructed with tin plating and lead-free materials, it meets AEC-Q200 standards.
Package0402
Resistance3kR
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Panasonic ERJ-2RKF3001X datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Panasonic ERJ-2RKF3001X technical specifications.
General
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Construction | Rectangular |
| Contact Plating | Tin |
| Depth | 0.5mm |
| Features | Automotive AEC-Q200 |
| Height | 0.35mm |
| Lead Free | Lead Free |
| Length | 1mm |
| Max Operating Temperature | 155°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100mW |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Yes |
| Resistance | 3kR |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | ERJ |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERJ-2RKF3001X Datasheet
Download the complete datasheet for Panasonic ERJ-2RKF3001X to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

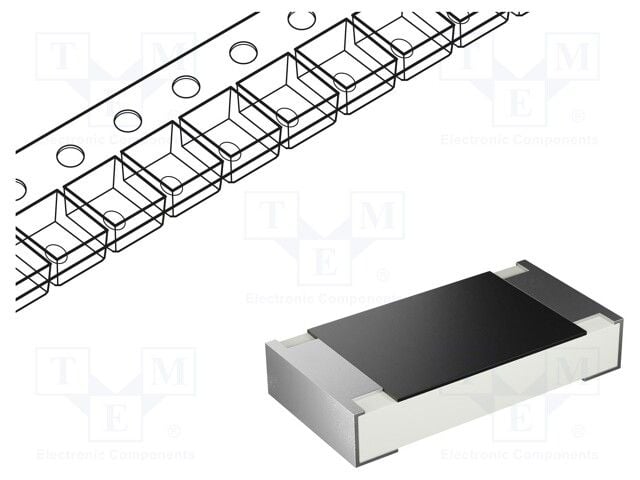

Product Images
