Surface mount thick film chip resistor, 499 Ohm resistance with 1% tolerance. Features a 0402 (1005 metric) rectangular case with tin contact plating. Rated for 1/10W (100mW) power dissipation and 50V DC. Operating temperature range from -55°C to 155°C, with AEC-Q200 automotive qualification.
Package0402
Resistance499R
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERJ-2RKF4990X technical specifications.
General
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Construction | Rectangular |
| Contact Plating | Tin |
| Depth | 0.5mm |
| Features | Automotive AEC-Q200 |
| Height | 0.35mm |
| Lead Free | Lead Free |
| Length | 1mm |
| Max Operating Temperature | 155°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100mW |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 499R |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | ERJ |
| Size Code | 0402 |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERJ-2RKF4990X Datasheet
Download the complete datasheet for Panasonic ERJ-2RKF4990X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

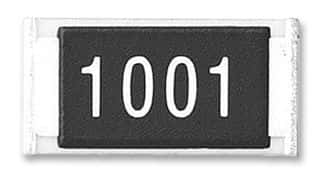

Product Images
