Surface mount chip resistor with 54.9 ohm resistance and 1% tolerance. Features a 0603 (1608 metric) case code, 1/10W (100mW) power dissipation, and a thick film construction. Operating temperature range is -55°C to 155°C, with a maximum voltage rating of 75V DC. Designed for automotive applications with AEC-Q200 qualification and packaged on tape and reel.
Package0603
Resistance54.9R
Voltage Rating75V
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERJ-3EKF54R9V technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Rectangular |
| Contact Plating | Tin |
| Depth | 0.8mm |
| Features | Automotive AEC-Q200 |
| Height | 0.022inch |
| Lead Free | Lead Free |
| Length | 1.6mm |
| Max Operating Temperature | 155°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100mW |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 54.9R |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | ERJ |
| Tolerance | 1% |
| Voltage Rating | 75V |
| DC Rated Voltage | 50V |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERJ-3EKF54R9V Datasheet
Download the complete datasheet for Panasonic ERJ-3EKF54R9V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

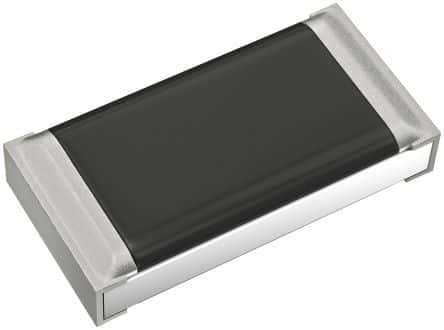

Product Images
