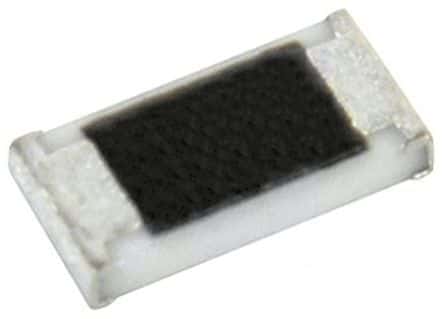

Surface mount thick film chip resistor with 62 Ohm resistance and 1% tolerance. Features a 0603 [1608 Metric] package, 100mW power dissipation, and 75V voltage rating. Designed for automotive applications with AEC-Q200 qualification, operating across a -55°C to 155°C temperature range. RoHS compliant with tin contact plating.
Package0603
Resistance62R
Voltage Rating75V
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERJ-3EKF62R0V technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Contact Plating | Tin |
| Depth | 0.8mm |
| Features | Automotive AEC-Q200 |
| Height | 0.45mm |
| Length | 1.6mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100mW |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 62R |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | ERJ |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 75V |
| DC Rated Voltage | 75V |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERJ-3EKF62R0V Datasheet
Download the complete datasheet for Panasonic ERJ-3EKF62R0V to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
