Surface mount chip resistor with 100mΩ resistance and 5% tolerance. Features 1W power dissipation, 2512 case code (6432 metric), and thick film technology. Operating temperature range from -55°C to 125°C, with tin contact plating. Automotive AEC-Q200 qualified and RoHS compliant.
Package2512
Resistance100mR
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERJ-L1WKJ10CU technical specifications.
General
| Case Code (Imperial) | 2512 |
| Case Code (Metric) | 6432 |
| Package/Case | 2512 |
| Contact Plating | Tin |
| Depth | 3.2mm |
| Features | Automotive AEC-Q200 |
| Height | 0.047inch |
| Lead Free | Lead Free |
| Length | 6.4mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1W |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Resistance | 100mR |
| Resistance Tolerance | 5% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | ERJ |
| Size Code | 2512 |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERJ-L1WKJ10CU Datasheet
Download the complete datasheet for Panasonic ERJ-L1WKJ10CU to view detailed technical specifications.
No datasheet is available for this part.

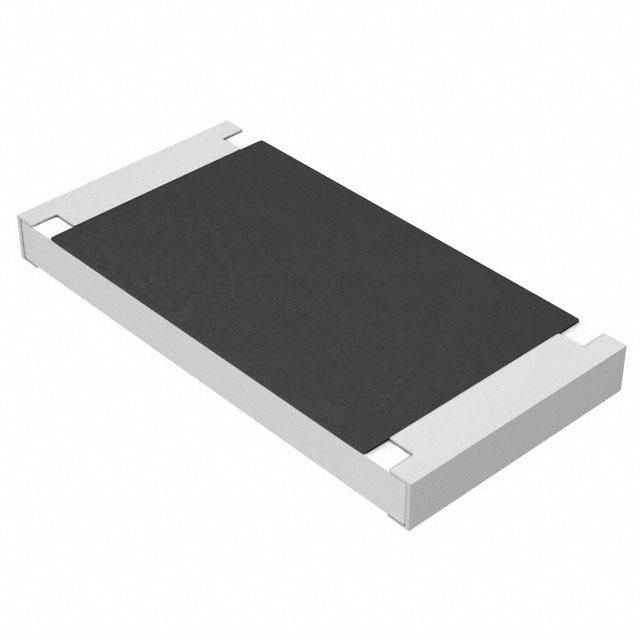

Product Images
