Radial SIDAC, 430V varistor voltage with 10% tolerance, designed for surge protection. Features a 5mm diameter, 5.6mm thickness, and 5mm lead pitch for radial through-hole mounting. Offers a maximum operating temperature of 85°C and a minimum of -40°C, with a maximum supply voltage of 275V AC. Handles a maximum surge current of 800A and a clamping current of 5A, with a clamping voltage of 745V. This lead-free, RoHS-compliant component provides 20J of energy absorption.
PackageRadial
Capacitance70pF
Voltage Rating350V
MountingRadial, Through Hole
Quick Jump:
Technical Specifications
Panasonic ERZ-V05D431 technical specifications.
General
| Capacitance | 70pF |
| Package/Case | Radial |
| Clamping Current | 5A |
| Clamping Voltage | 745V |
| Clamping Voltage-Max | 745V |
| Depth | 5.6mm |
| Diameter | 5mm |
| Energy | 20J |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Radial |
| Material | Zinc |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 5A |
| Max Supply Voltage | 275V |
| Max Surge Current | 800A |
| Max Varistor Voltage | 473V |
| Min Varistor Voltage | 387V |
| Max Voltage Rating (AC) | 275V |
| Max Voltage Rating (DC) | 350V |
| Mount | Radial, Through Hole |
| Number of Circuits | 1 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | V |
| Termination | Radial |
| Thickness | 5.6mm |
| Varistor Voltage | 430V |
| Voltage Rating | 350V |
| Voltage Rating (AC) | 275V |
| DC Rated Voltage | 350V |
| Voltage Tolerance | 10% |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERZ-V05D431 Datasheet
Download the complete datasheet for Panasonic ERZ-V05D431 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

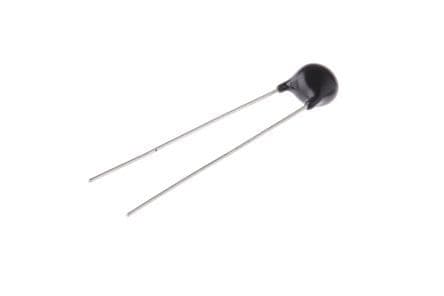

Product Images
