Radial SIDAC, 47V varistor voltage with 10% tolerance, offers 30VAC/38VDC voltage rating and 250A current rating. Features 104V clamping voltage, 1.5J energy, and 250A surge current capability. Operates from -40°C to 85°C in a radial package with a 5mm lead pitch. This lead-free component is RoHS compliant.
PackageRadial
Capacitance650pF
Voltage Rating38V
Current Rating250A
Quick Jump:
Technical Specifications
Panasonic ERZ-V05D470 technical specifications.
General
| Capacitance | 650pF |
| Package/Case | Radial |
| Clamping Current | 1A |
| Clamping Voltage | 104V |
| Clamping Voltage-Max | 104V |
| Current Rating | 250A |
| Depth | 4.5mm |
| Diameter | 5mm |
| Energy | 1.5J |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Radial |
| Material | Zinc |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 250A |
| Max Supply Voltage | 30V |
| Max Surge Current | 250A |
| Max Varistor Voltage | 52V |
| Min Varistor Voltage | 42V |
| Max Voltage Rating (AC) | 30V |
| Max Voltage Rating (DC) | 38V |
| Mount | Radial, Through Hole |
| Number of Circuits | 1 |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | V |
| Termination | Radial |
| Thickness | 4.5mm |
| Varistor Voltage | 47V |
| Voltage Rating | 38V |
| Voltage Rating (AC) | 30V |
| DC Rated Voltage | 38V |
| Voltage Tolerance | 10% |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERZ-V05D470 Datasheet
Download the complete datasheet for Panasonic ERZ-V05D470 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

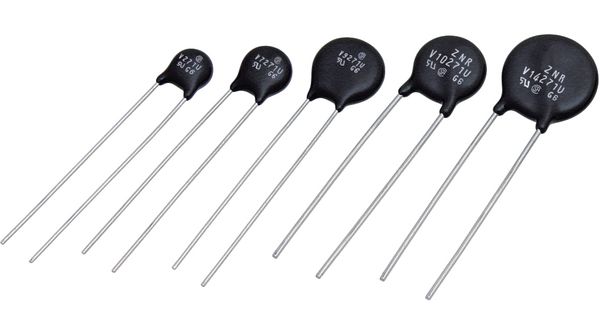

Product Images
