Radial, through-hole SIDAC with a 430V varistor voltage and 10% tolerance. Features a 7mm diameter, 5.6mm thickness, and 5mm lead pitch. Offers a maximum surge current of 1.75kA, clamping voltage of 710V, and clamping current of 10A. Operates within a temperature range of -40°C to 85°C, with AC and DC voltage ratings of 275V and 350V respectively. Constructed with a zinc metal package, this RoHS compliant component is supplied in bulk packaging.
PackageMetal
Capacitance120pF
MountingRadial, Through Hole
Quick Jump:
Technical Specifications
Panasonic ERZ-V07D431 technical specifications.
General
| Capacitance | 120pF |
| Package/Case | Metal |
| Clamping Current | 10A |
| Clamping Voltage | 710V |
| Depth | 5.6mm |
| Diameter | 7mm |
| Energy | 40J |
| ESD Protection | No |
| Height | 11.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 5mm |
| Lead/Base Style | Radial |
| Material | Zinc |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 275V |
| Max Surge Current | 1.75kA |
| Max Varistor Voltage | 473V |
| Min Varistor Voltage | 387V |
| Max Voltage Rating (AC) | 275V |
| Max Voltage Rating (DC) | 350V |
| Mount | Radial, Through Hole |
| Number of Circuits | 1 |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | V |
| Termination | Radial |
| Thickness | 5.6mm |
| Tolerance | 20% |
| Varistor Voltage | 430V |
| Voltage Rating (AC) | 275V |
| DC Rated Voltage | 350V |
| Voltage Tolerance | 10% |
| Width | 5.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERZ-V07D431 Datasheet
Download the complete datasheet for Panasonic ERZ-V07D431 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

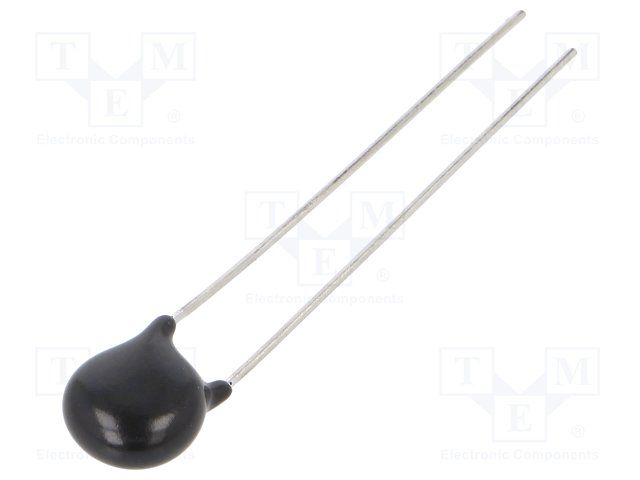

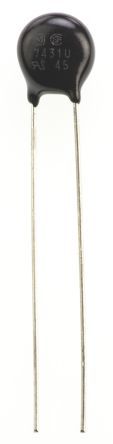

Product Images
