Radial SIDAC, 40VAC/56VDC rated voltage, featuring a 68V varistor voltage with a range of 61V to 75V. Offers a 1kA maximum surge current and 5A clamping current at 135V clamping voltage. With a 2.8nF capacitance and 9.8J energy absorption, this through-hole component operates from -40°C to 85°C. Packaged in bulk, it has a 5mm lead pitch and a 9mm diameter.
PackageRadial
Capacitance2.8nF
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic ERZ-V09D680 technical specifications.
General
| Capacitance | 2.8nF |
| Package/Case | Radial |
| Clamping Current | 5A |
| Clamping Voltage | 135V |
| Depth | 4.5mm |
| Diameter | 9mm |
| Energy | 9.8J |
| Lead Pitch | 5mm |
| Lead/Base Style | Radial |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Surge Current | 1kA |
| Max Varistor Voltage | 75V |
| Min Varistor Voltage | 61V |
| Max Voltage Rating (AC) | 40V |
| Max Voltage Rating (DC) | 56V |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | V |
| Termination | Radial |
| Varistor Voltage | 68V |
| Voltage Rating (AC) | 40V |
| DC Rated Voltage | 56V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERZ-V09D680 Datasheet
Download the complete datasheet for Panasonic ERZ-V09D680 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

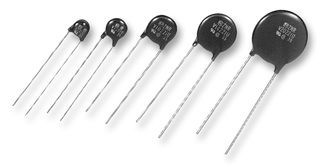

Product Images
