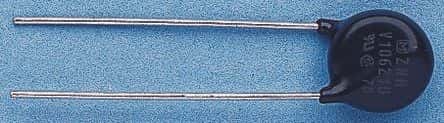

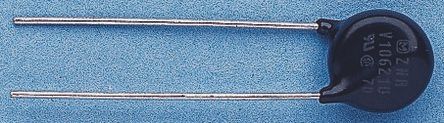

Radial SIDAC, designed for surge protection, features a 240V varistor voltage with a 10% tolerance, operating at 150VAC or 200VDC. This component offers a 3.5kA maximum surge current and a 25A clamping current at a 395V clamping voltage. Encased in metal with zinc material, it has a radial lead style and through-hole mounting. Operating temperature range is -40°C to 85°C, with a 7.5mm lead pitch and dimensions of 10mm diameter, 5mm thickness, and 14.5mm height.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic ERZ-V10D241 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic ERZ-V10D241 technical specifications.
| Capacitance | 380pF |
| Package/Case | Metal |
| Clamping Current | 25A |
| Clamping Voltage | 395V |
| Clamping Voltage-Max | 395V |
| Depth | 5mm |
| Diameter | 10mm |
| Energy | 42J |
| ESD Protection | No |
| Height | 14.5mm |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Radial |
| Material | Zinc |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3.5kA |
| Max Supply Voltage | 150V |
| Max Surge Current | 3.5kA |
| Max Varistor Voltage | 264V |
| Min Varistor Voltage | 216V |
| Max Voltage Rating (AC) | 150V |
| Max Voltage Rating (DC) | 200V |
| Mount | Radial, Through Hole |
| Number of Circuits | 1 |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | V |
| Termination | Radial |
| Thickness | 5mm |
| Varistor Voltage | 240V |
| Voltage Rating | 200V |
| Voltage Rating (AC) | 150V |
| DC Rated Voltage | 200V |
| Voltage Tolerance | 10% |
| Width | 5mm |
| RoHS | Compliant |
