Radial, through-hole SIDAC with a 430V varistor voltage and 10% tolerance. Features a 3.5kA surge current capability, 275V AC maximum voltage rating, and 350V DC rated voltage. Offers a clamping voltage of 710V at 25A clamping current, with 80J energy absorption. Constructed with a zinc metal package, measuring 10mm in diameter and 6mm in thickness, with a 7.5mm lead pitch. Operates from -40°C to 85°C and is RoHS compliant.
PackageMetal
Capacitance270pF
Voltage Rating350V
MountingRadial, Through Hole
Quick Jump:
Technical Specifications
Panasonic ERZ-V10D431 technical specifications.
General
Capacitance
270pF
Package/Case
Metal
Clamping Current
25A
Clamping Voltage
710V
Clamping Voltage-Max
710V
Depth
6mm
Diameter
10mm
Energy
80J
ESD Protection
No
Height
14.5mm
Lead Free
Lead Free
Lead Pitch
7.5mm
Lead/Base Style
Radial
Length
14.5mm
Material
Zinc
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
3.5kA
Max Supply Voltage
275V
Max Surge Current
3.5kA
Max Varistor Voltage
473V
Min Varistor Voltage
387V
Max Voltage Rating (AC)
275V
Max Voltage Rating (DC)
350V
Mount
Radial, Through Hole
Number of Circuits
1
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
V
Termination
Radial
Thickness
6mm
Varistor Voltage
430V
Voltage Rating
350V
Voltage Rating (AC)
275V
DC Rated Voltage
350V
Voltage Tolerance
10%
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Panasonic ERZ-V10D431 Datasheet
Download the complete datasheet for Panasonic ERZ-V10D431 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

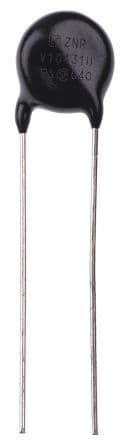

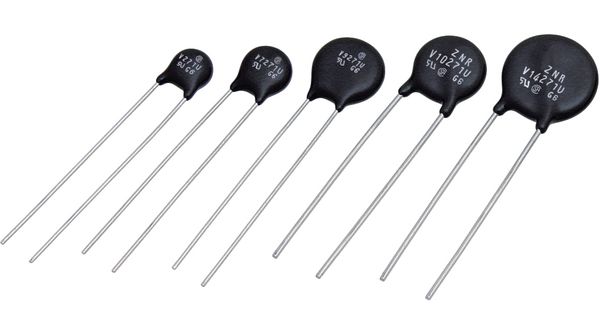

Product Images
