Radial, through-hole SIDAC with a 470V varistor voltage and 10% tolerance. Features a 3.5kA max surge current, 25A clamping current, and 775V clamping voltage. This zinc disc component offers 85J energy absorption and operates within a -40°C to 85°C temperature range. It has a 10mm diameter, 6.2mm thickness, and 7.5mm lead pitch.
PackageMetal
Capacitance230pF
Voltage Rating385V
MountingRadial, Through Hole
Quick Jump:
Technical Specifications
Panasonic ERZ-V10D471 technical specifications.
General
| Capacitance | 230pF |
| Package/Case | Metal |
| Clamping Current | 25A |
| Clamping Voltage | 775V |
| Clamping Voltage-Max | 775V |
| Depth | 6.2mm |
| Diameter | 10mm |
| Energy | 85J |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Radial |
| Material | Zinc |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 25A |
| Max Supply Voltage | 300V |
| Max Surge Current | 3.5kA |
| Max Varistor Voltage | 517V |
| Min Varistor Voltage | 423V |
| Max Voltage Rating (AC) | 300V |
| Max Voltage Rating (DC) | 385V |
| Mount | Radial, Through Hole |
| Number of Circuits | 1 |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | V |
| Termination | Radial |
| Thickness | 6.2mm |
| Varistor Voltage | 470V |
| Voltage Rating | 385V |
| Voltage Rating (AC) | 300V |
| DC Rated Voltage | 385V |
| Voltage Tolerance | 10% |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERZ-V10D471 Datasheet
Download the complete datasheet for Panasonic ERZ-V10D471 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

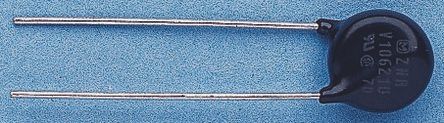

Product Images
