Radial SIDAC with 82V varistor voltage, 3.5kA surge current capability, and 135V clamping voltage. Features 2nF capacitance, 14J energy absorption, and 25A clamping current. Encased in a 10mm diameter metal package with radial leads, this component operates from -40°C to 85°C and is RoHS compliant. Designed for through-hole mounting with a 7.5mm lead pitch.
PackageMetal
Capacitance2nF
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic ERZ-V10D820 technical specifications.
General
Capacitance
2nF
Package/Case
Metal
Clamping Current
25A
Clamping Voltage
135V
Depth
4.5mm
Diameter
10mm
Energy
14J
Lead Free
Lead Free
Lead Pitch
7.5mm
Lead/Base Style
Radial
Material
Zinc
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Surge Current
3.5kA
Max Varistor Voltage
90V
Min Varistor Voltage
74V
Max Voltage Rating (AC)
50V
Max Voltage Rating (DC)
65V
Mount
Through Hole
Number of Circuits
1
Package Quantity
1000
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
V
Termination
Radial
Thickness
4.5mm
Varistor Voltage
82V
Voltage Rating (AC)
50V
DC Rated Voltage
65V
Compliance
RoHS
Compliant
Datasheet
Panasonic ERZ-V10D820 Datasheet
Download the complete datasheet for Panasonic ERZ-V10D820 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

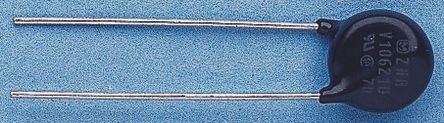

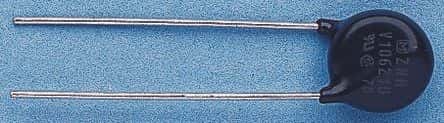

Product Images
