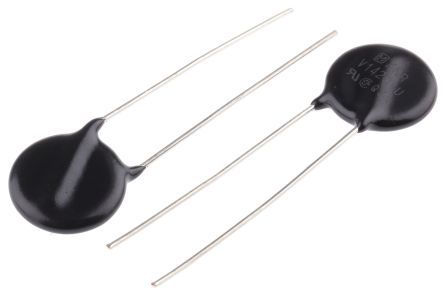

Radial SIDAC with 130V AC / 170V DC voltage rating and 200V varistor voltage. Features 6kA max surge current, 50A clamping current, and 340V clamping voltage. Operates from -40°C to 85°C with a 7.5mm lead pitch and 4.8mm thickness. Packaged in bulk, this lead-free component offers 770pF capacitance and 70J energy absorption.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panasonic ERZ-V14D201 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panasonic ERZ-V14D201 technical specifications.
| Capacitance | 770pF |
| Package/Case | Metal |
| Clamping Current | 50A |
| Clamping Voltage | 340V |
| Depth | 4.8mm |
| Diameter | 14mm |
| Energy | 70J |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Radial |
| Material | Zinc |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 310V |
| Max Surge Current | 6kA |
| Max Varistor Voltage | 225V |
| Min Varistor Voltage | 185V |
| Max Voltage Rating (AC) | 130V |
| Max Voltage Rating (DC) | 170V |
| Mount | Radial, Through Hole |
| Number of Circuits | 1 |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | ZNR® |
| Termination | Radial |
| Thickness | 4.8mm |
| Varistor Voltage | 200V |
| Voltage Rating (AC) | 130V |
| DC Rated Voltage | 170V |
| Voltage Tolerance | 10% |
| RoHS | Compliant |
