Radial SIDAC with 240V varistor voltage, 150V AC max voltage rating, and 200V DC rated voltage. Features a 6kA max surge current, 50A clamping current, and 395V clamping voltage. Operates from -40°C to 85°C with a 7.5mm lead pitch and 5mm diameter. RoHS compliant and lead-free.
PackageRadial
Capacitance700pF
MountingRadial, Through Hole
Quick Jump:
Technical Specifications
Panasonic ERZ-V14D241 technical specifications.
General
Capacitance
700pF
Package/Case
Radial
Clamping Current
50A
Clamping Voltage
395V
Depth
5mm
Diameter
14mm
Energy
84J
Lead Free
Lead Free
Lead Pitch
7.5mm
Lead/Base Style
Radial
Material
Zinc
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
150V
Max Surge Current
6kA
Max Varistor Voltage
264V
Min Varistor Voltage
216V
Max Voltage Rating (AC)
150V
Max Voltage Rating (DC)
200V
Mount
Radial, Through Hole
Number of Circuits
1
Package Quantity
1000
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
ZNR®
Termination
Radial
Thickness
5mm
Varistor Voltage
240V
Voltage Rating (AC)
150V
DC Rated Voltage
200V
Voltage Tolerance
10%
Compliance
RoHS
Compliant
Datasheet
Panasonic ERZ-V14D241 Datasheet
Download the complete datasheet for Panasonic ERZ-V14D241 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

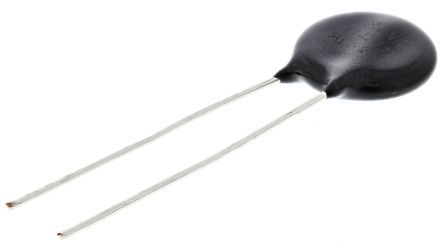

Product Images
