Radial SIDAC, 250VAC/320VDC rated voltage, featuring a 390V varistor voltage with a 10% tolerance. Offers a 6kA maximum surge current and 50A clamping current, with a 650V clamping voltage. Operates within a -40°C to 85°C temperature range and has a 140J energy rating. Packaged in bulk with radial, through-hole mounting.
PackageRadial
Capacitance500pF
MountingRadial, Through Hole
Quick Jump:
Technical Specifications
Panasonic ERZ-V14D391 technical specifications.
General
Capacitance
500pF
Package/Case
Radial
Clamping Current
50A
Clamping Voltage
650V
Depth
5.8mm
Diameter
14mm
Energy
140J
Lead Free
Lead Free
Lead Pitch
7.5mm
Lead/Base Style
Radial
Material
Zinc
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
250V
Max Surge Current
6kA
Max Varistor Voltage
429V
Min Varistor Voltage
351V
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
320V
Mount
Radial, Through Hole
Number of Circuits
1
Package Quantity
1000
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
V
Termination
Radial
Thickness
5.8mm
Varistor Voltage
390V
Voltage Rating (AC)
250V
DC Rated Voltage
320V
Voltage Tolerance
10%
Compliance
RoHS
Compliant
Datasheet
Panasonic ERZ-V14D391 Datasheet
Download the complete datasheet for Panasonic ERZ-V14D391 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

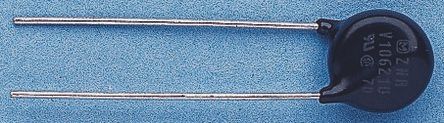

Product Images
