Radial SIDAC with 56V varistor voltage, 10A clamping current, and 2kA surge capability. Features 14mm diameter, 7.5mm lead pitch, and 6.5nF capacitance. Operates from -40°C to 85°C with a 35V AC and 45V DC voltage rating. Through-hole mounting in a bulk package.
PackageRadial
Capacitance6.5nF
Voltage Rating45V
MountingRadial, Through Hole
Quick Jump:
Technical Specifications
Panasonic ERZ-V14D560 technical specifications.
General
| Capacitance | 6.5nF |
| Package/Case | Radial |
| Clamping Current | 10A |
| Clamping Voltage | 110V |
| Clamping Voltage-Max | 110V |
| Depth | 5.1mm |
| Diameter | 14mm |
| Energy | 16J |
| Lead Free | Lead Free |
| Lead Pitch | 7.5mm |
| Lead/Base Style | Radial |
| Material | Zinc |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2kA |
| Max Supply Voltage | 35V |
| Max Surge Current | 2kA |
| Max Varistor Voltage | 62V |
| Min Varistor Voltage | 50V |
| Max Voltage Rating (AC) | 35V |
| Max Voltage Rating (DC) | 45V |
| Mount | Radial, Through Hole |
| Number of Circuits | 1 |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | V |
| Termination | Radial |
| Thickness | 5.1mm |
| Varistor Voltage | 56V |
| Voltage Rating | 45V |
| Voltage Rating (AC) | 35V |
| DC Rated Voltage | 45V |
| Voltage Tolerance | 10% |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERZ-V14D560 Datasheet
Download the complete datasheet for Panasonic ERZ-V14D560 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

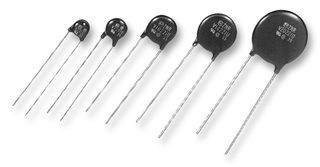

Product Images
